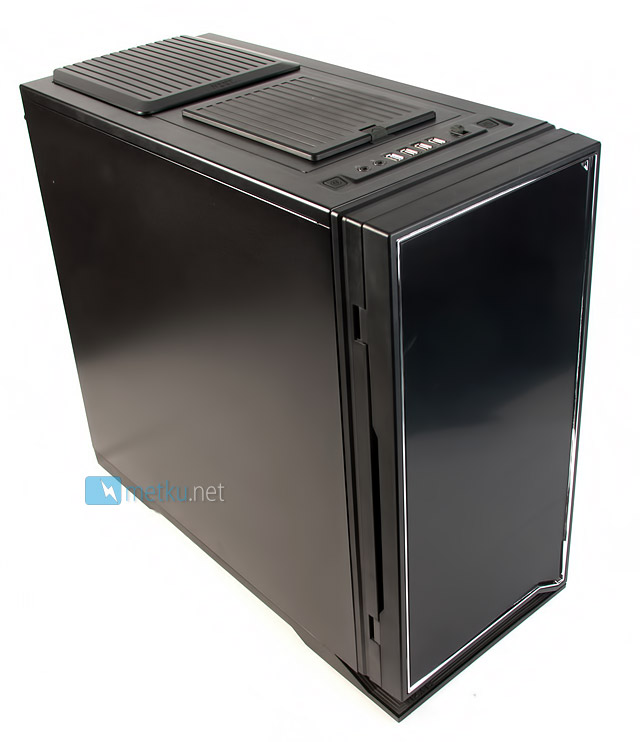

Out of the box and we finally get to see how the case actually looks. And like I already said, the H2 Classic definitely fits in the same category with the likes of the Hush and the Whisper. The front is covered with a door and the side panel has no window or other details. Really the only thing to catch your eye is the roof.

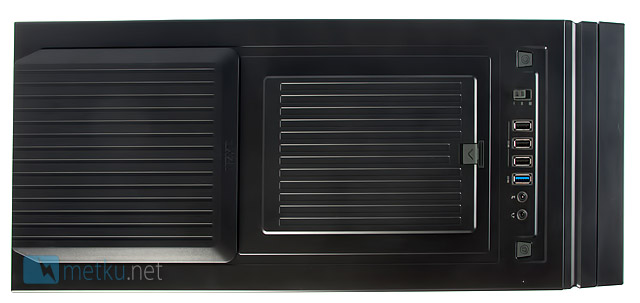

The roof
And here it is, starting from the front there's the front panel connections, switches and the three speed fan controller. The connections are a nice set of a single USB3-port, three USB2-ports and the audio jacks. Behind these there's the hot-swap drive bay covered with a plastic hatch. Remove the hatch, drop in the drive and you're good to go, and finally at the back there's another plastic hatch covering the optional 140 mm exhaust fan hole.

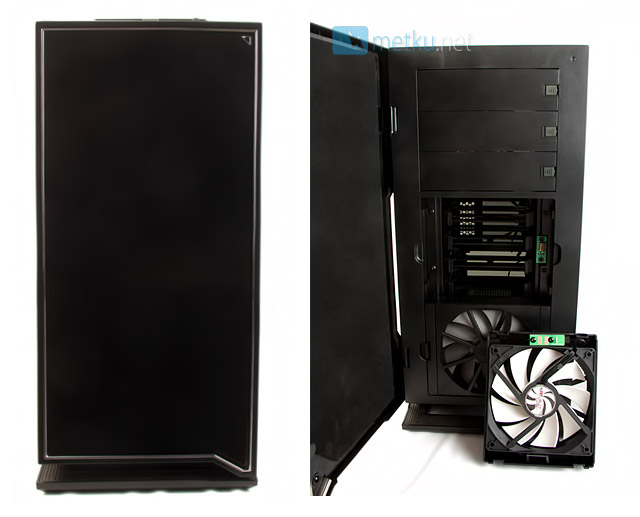

Front
At closer look the front panel isn't just a square piece, but there's still some subtle styling. There's a small gap at the bottom to allow air for the front fans and there's a chrome strip running around the panel.
Inside there are three 5,25" drive bays with nice tabs that allow easy removal. Under those there are 120 mm fan holders that hide the front-access hard drive bays behind them. The fan holders pop off tool-freely and get their power through connectors, so there's no cables to worry about. The same holders also come with removable dust filters. Overall these holders are a really nice detail, and the special connectors don't even make changing the fans hard, as the fans are still using normal 3-pin fan connectors.
