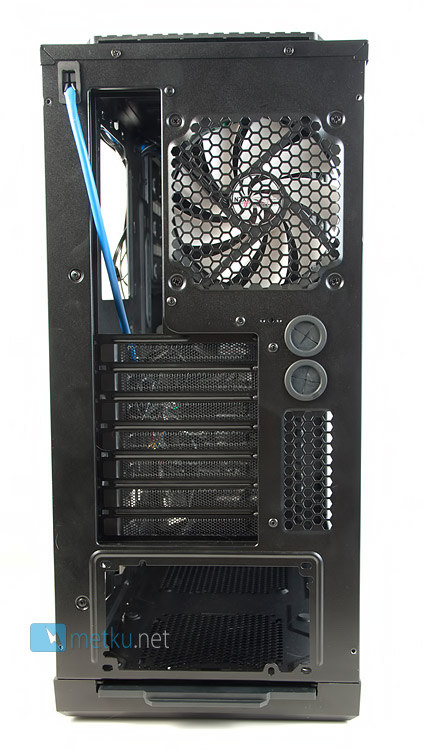

SuomeksiH2 Classic - rear
From behind the H2 Classis is the usual modern design with the power supply mounted at the back and with a single 120 mm exhaust fan. Just like all cases we've seen with USB3 front panel connectivity, also the H2 has the blue USB3 cable sticking through the rear panel. Other things to notice are the ventilated PCI-slot covers, holes for water cooling hoses and also a dust filter at the bottom which slides out through the back.

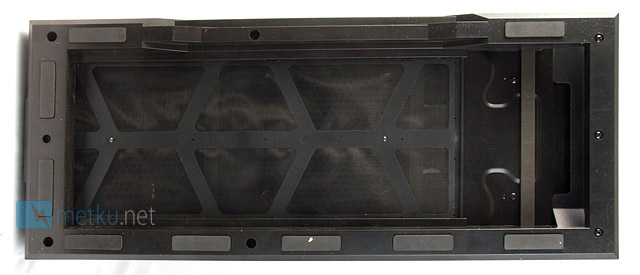

Bottom
A look at the bottom better shows the dust filter here. It's a large filter that covers both the power supply air intake as well as the optional 120 mm fan hole here. The case stands on a bit of a pedestal rather than regular feet, but there are still enough holes to allow cool air to the intakes.

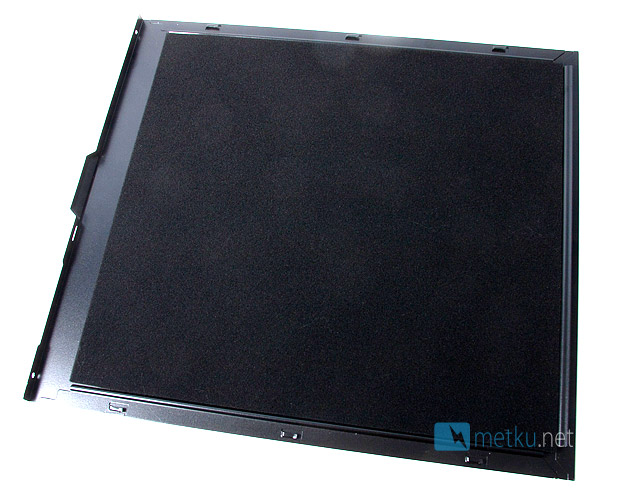

Side panel
The side panels of the case are lined with a thin layer of noise dampening foam. Unlike the bitumen used in the Fractal Design cases, this foam is very light weight and doesn't help against vibrations. It might still be enough to reduce the noise or make the tone nicer.
 | Pages: 1 2 3 4 5 6 |  |
