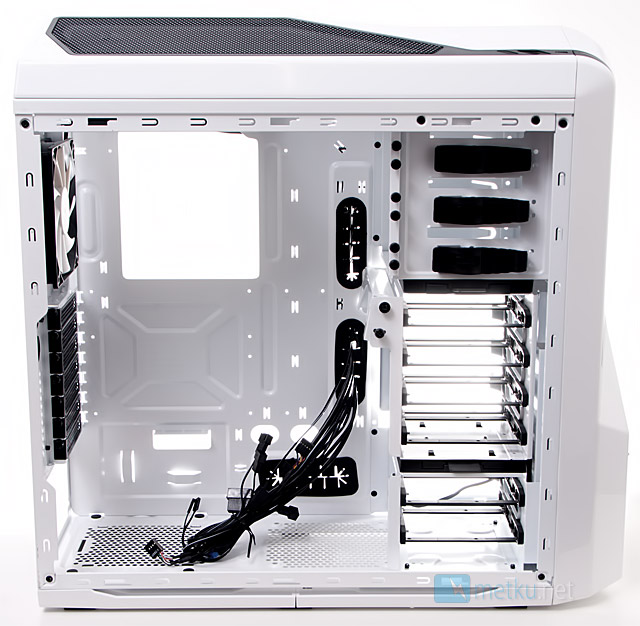

While the thick bezels make the case look rather large and exotic, the frame is actually quite small and normal. On the front there are the drive cages for three external 5,25" drives and a two-part hard drive cage with the top part having room for four drives and the bottom half for two more. On the motherboard tray there's a large hole to help with the CPU-cooler installation and plenty of holes for routing the cables cleanly.

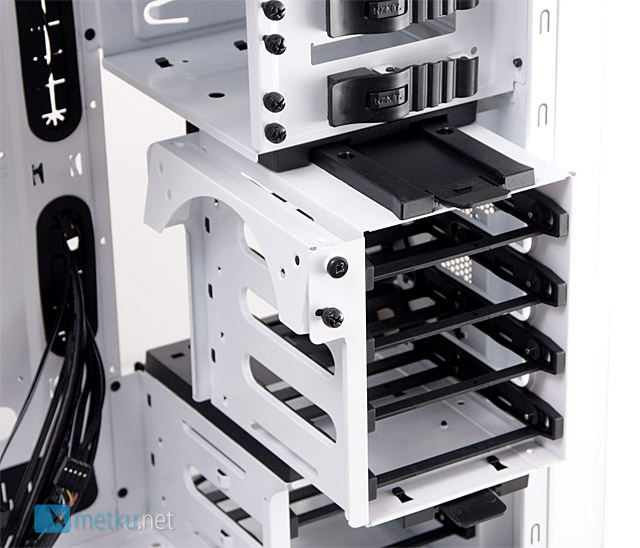

The top part of the drive cage can be easily removed to make room for extremely long graphic cards and help with the airflow, but even with the cage on the case supports cards up to 305 mm in length. On the side of the drive cage there's also yet another place for an optional fan. This mount also pivots so the fan can be aimed at the CPU-area or the expansion cards.

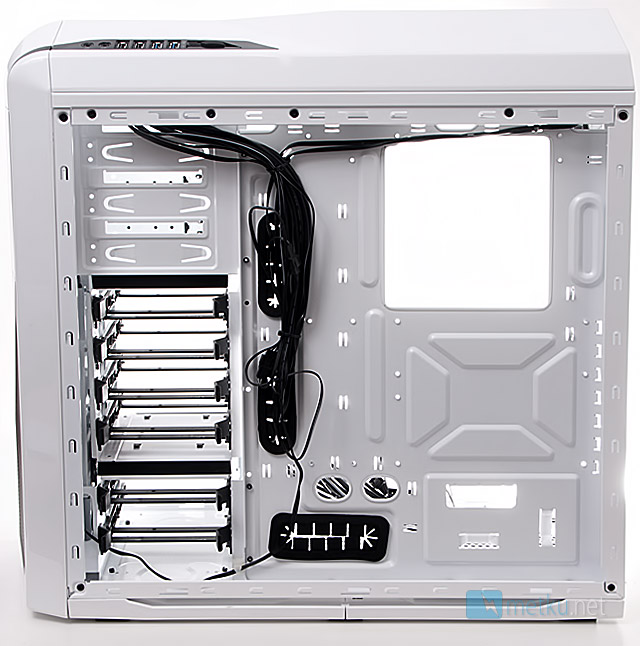

On the flipside the first thing to catch the eye is the huge number of cables running from the roof. After that the other thing to notice are the numerous small zip tie anchors which should make the installation and cable managing even easier.
