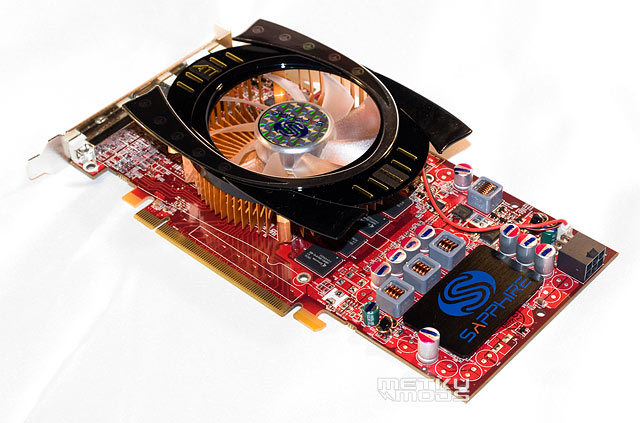

The front of the card once again really reveals nothing that surprising. The power circuitry has some addition cooling, provided with a small piece of aluminum which has a large Sapphire-logo on it. The heatsink that takes care of the GPU-core is a fairly simple one, and it does not incorporate any heatpipes. Seems like the new technology has some benefits here as well.

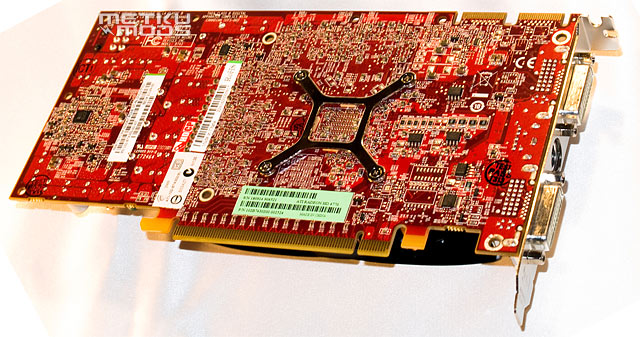

The back of the card as well really does not differ from any of the other cards which we've seen here.

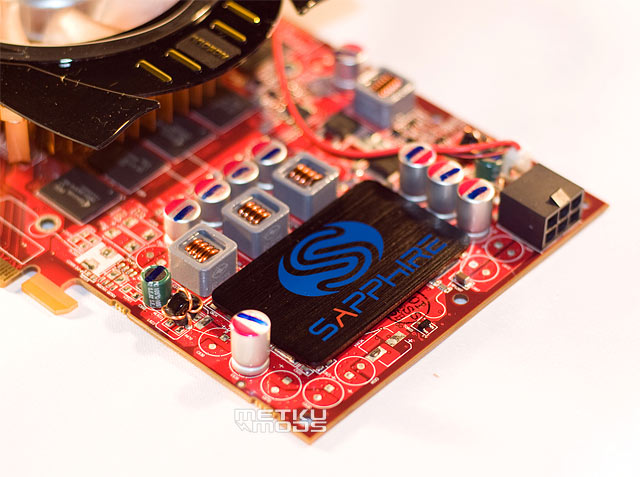

Here's a close-up on the power circuitry.

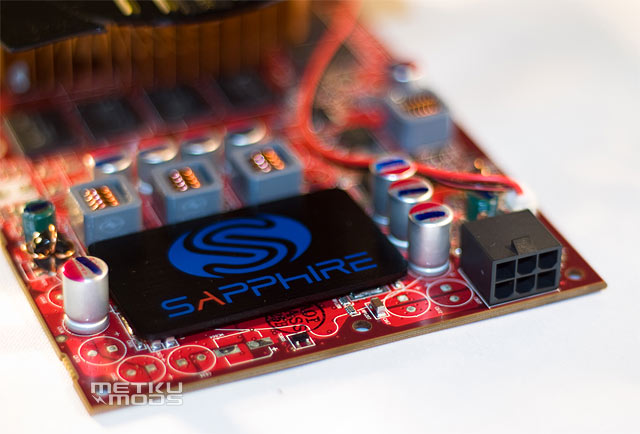

As we can see, the card only needs one 6-pin PCI-e power plug.

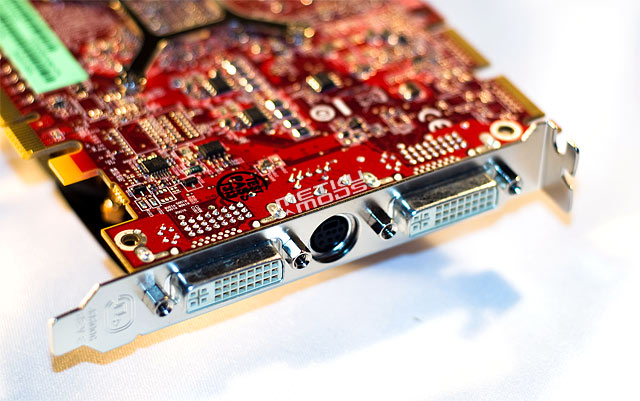

The back of the card has the basic layout, which we've become so familiar with the earlier AMD products. Two DVI-ports on the sides and the HDTV-connector.
