Silverstone PS07 Stylish case with smaller dimensions

Author: Lauri 'lauri_lr' Rahtu Published: 19.02.2012 Manufacturer: Silverstonetek Product Group: Enclosures In English Suomeksi

Precision Series PS07

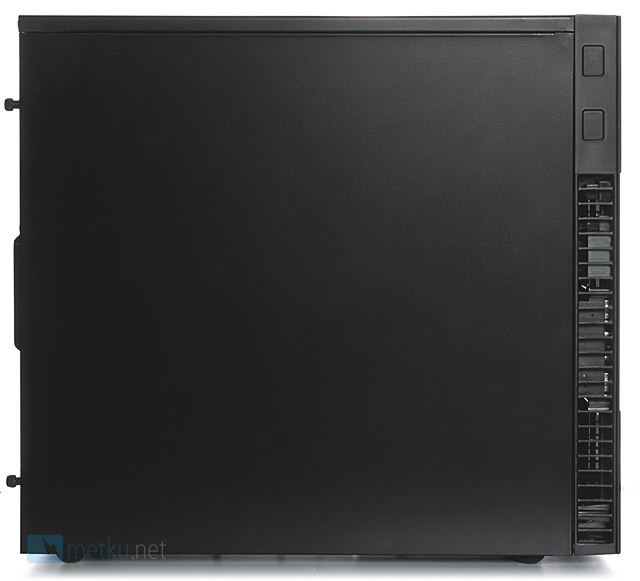

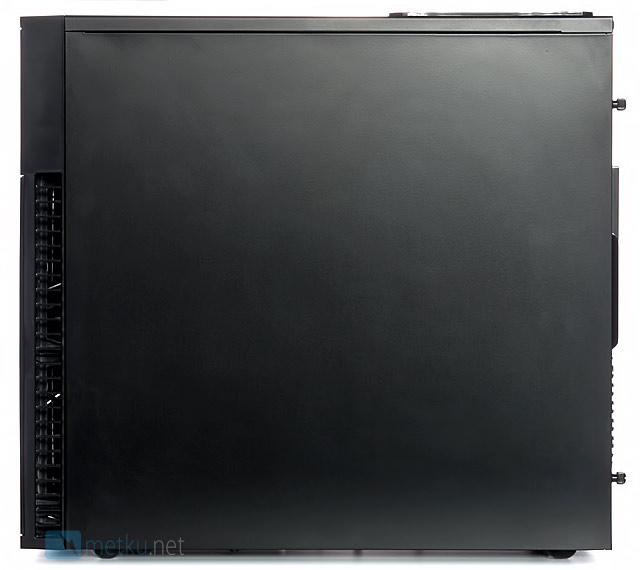

Both sides of PS07 are blank black boards and they are attached with two thumb screws each.

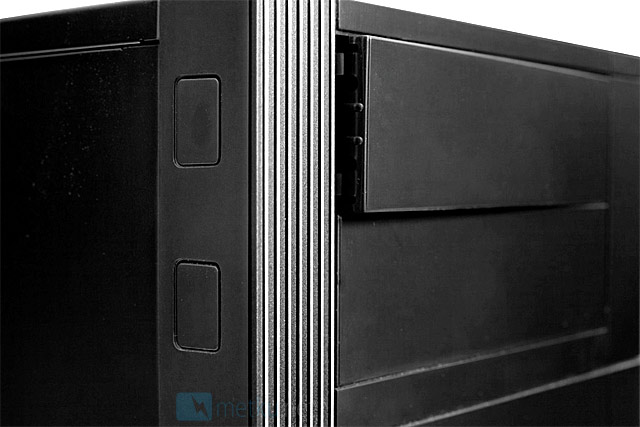

At the front panel’s sides there are big air intake holes which will allow the air flow to the case. Also in the front panel’s left side there are two buttons which have to be pressed when 5.25” covers are removed. This is a nice detail but for most users this will be completely useless. If you like HDD’s hot swapping, you might find this kind of mechanism useful.

Front

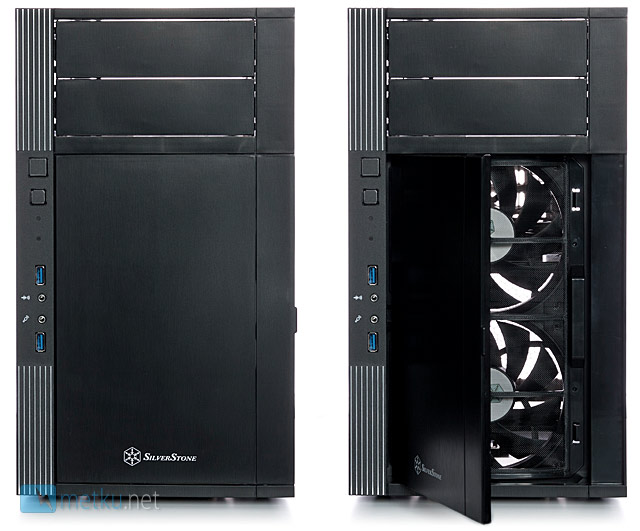

The front panel is made of plastic that looks like brushed aluminum. Also at the left side of the front panel there are a few silver stripes.

At the middle of the left side of the front panel there power switch, reset switch, LEDs, two USB3.0 connectors and audio jacks.

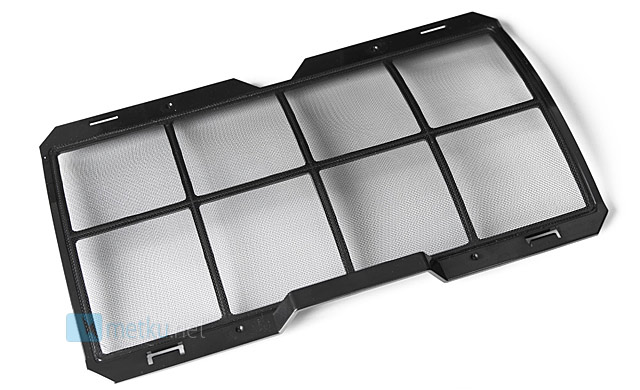

The front panel has a door that gives you an access to the front fans’ dust filter. The dust filter can be easily removed by simply pulling the handle. The door’s mechanism feels a bit cheap because it is locked to its place with two plastic clamps. A magnet or two would have been a lot better solution.
