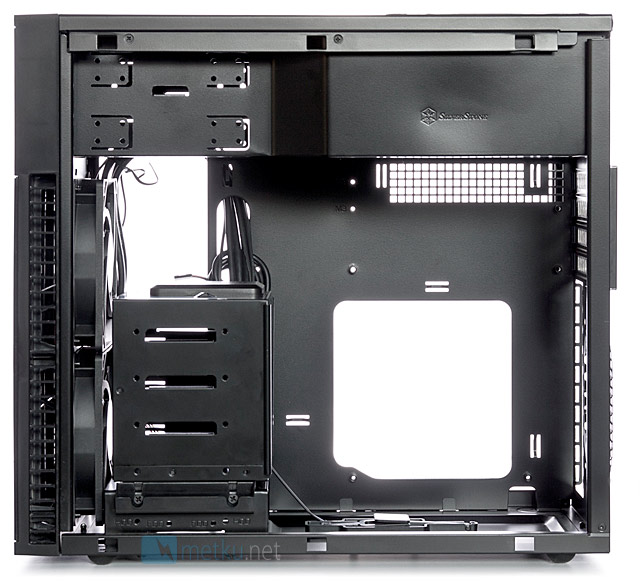

As previously mentioned, PS07 is inverted ATX which means that motherboard will be installed upside down and therefore the motherboard is mounted to the left side of the case.
Power supply is installed behind a metal sheet which goes all the way from front panel to rear panel and it gives a bit of a support for the case’s structure.

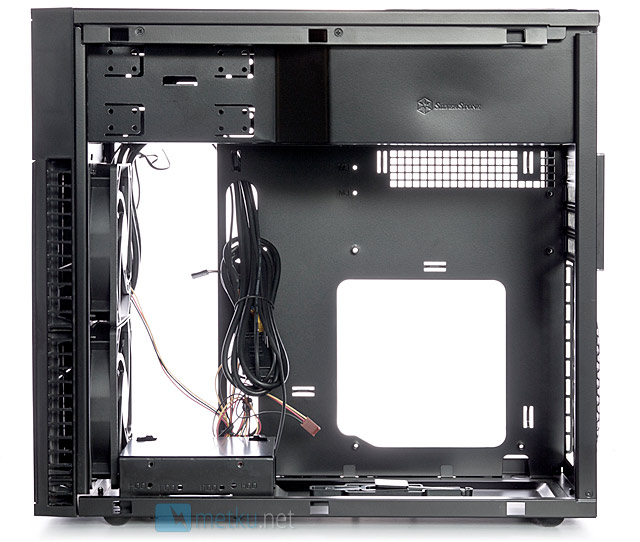

At the front panel there are two 120 mm intake fans which blow air directly for graphics card, HDDs and CPU cooler. HDD cage can be removed by unscrewing two screws and then pulling it out. Unfortunately the HDD cage cannot be rotated 90 degrees so there are certain limitations with CPU cooler’s compatibility.

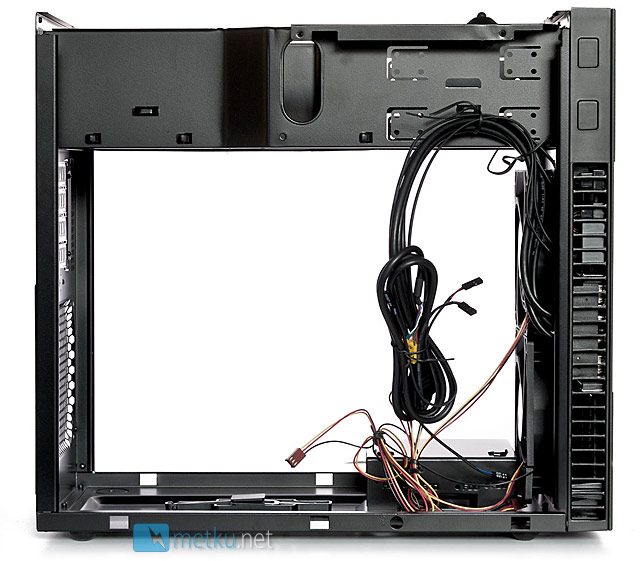

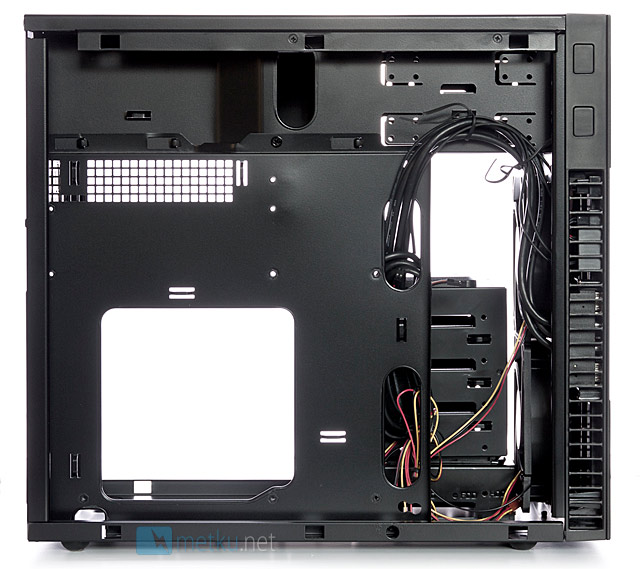

At the other side there is space for cables and also there are three holes for easier cable management. Like in TJ08-E, also in PS07 the motherboard tray is removable. In fact, the interior of PS07 is pretty much identical with TJ08-E, though the air intake is different.
