SuomeksiBottom

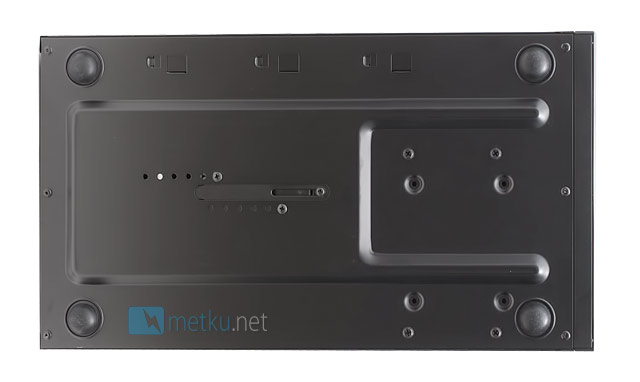

Looking at the bottom there are four rubber feet that keep the case firmly in place. At the front are also mounting holes for a single 2,5" drive, and towards the rear an adjustable support for the CPU-cooler.
Inside

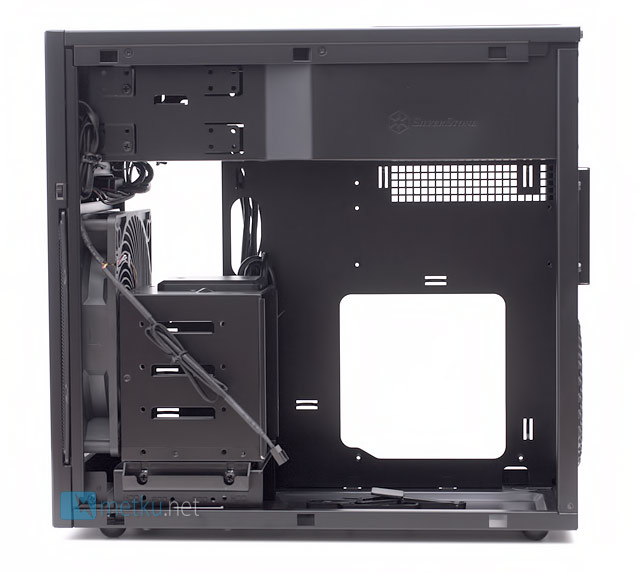

Removing the side panels reveals the internal layout of the case. At the top the 5,25" drive bays and the PSU-area are made from a single piece of sheet metal, which makes the case feel sturdy despite its lightness. In the front one can see the massive intake fan, and under it a removable hard drive bay for four drives. Under that is the cage for a single external 3,5" drive or an internal 3,5"/2,5" drive.

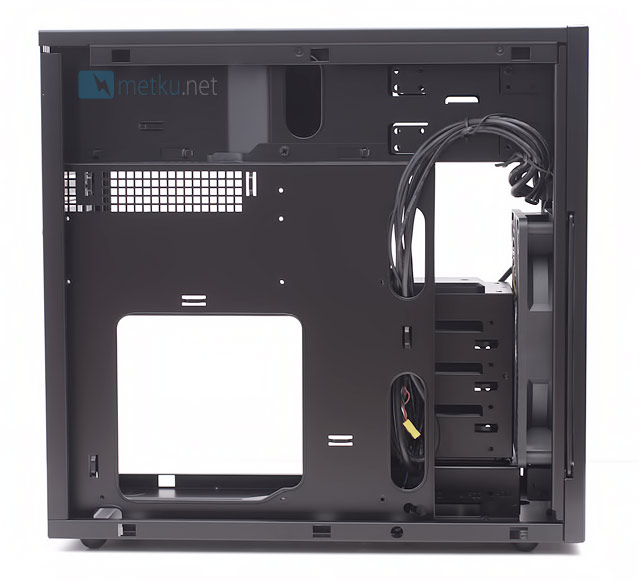

Looking from the other side there's plenty of space to hide the excess cables behind the motherboard tray, and also some holes for routing the cables through. On the removable motherboard tray there are also some loops for zip ties, so Silverstone has really thought about the cable management.
