SuomeksiInside

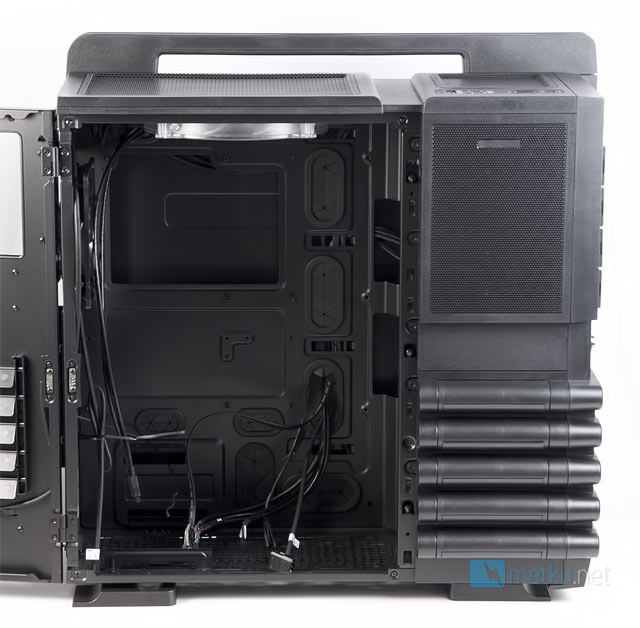

The case is an odd one, because the part of the side panel that opens is just about 2/3 of the total depth of the case. The opening mechanism is rather unique as well, because first of all there's another lock, then you need to press a button at the bottom of the case, which releases the hinged door. At the far left in this picture one can also see connectors that feed power to the side panel fan.
Once you look past this, the layout itself isn't bizarre, the PSU is at the bottom, the motherboard above it and the drive bays, even if you can't really see them, on the right. There's plenty of holes for cables on the motherboard tray, as well as a huge cutout for the CPU-cooler installation.

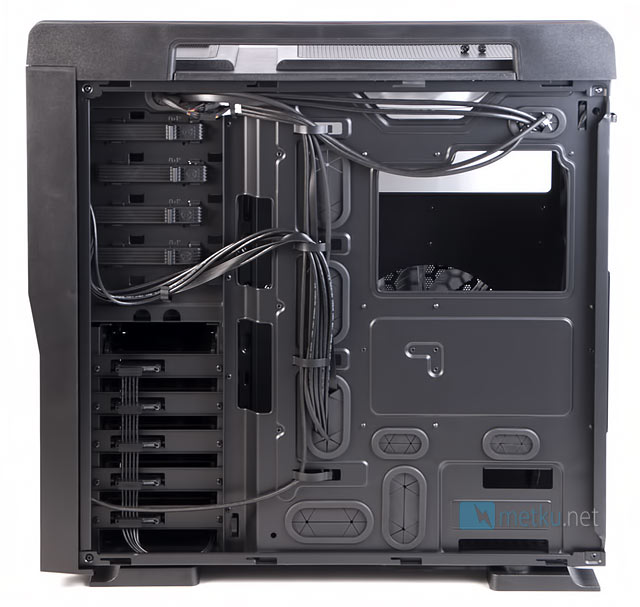

Looking from behind we can also see the drive bays. For 5,25" bays there are quick locks, and the hard drive bay back plane has also been wired up for power. On the motherboard tray there are metal wire holder keeping the cables in shape, but unfortunately no extra loops for the rest of the cables to be attached to.
Side panel fan

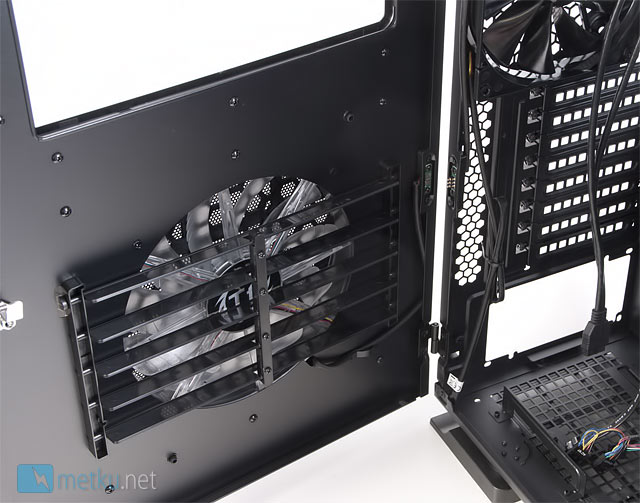

The side panel intake fan comes with an air flaps that can direct the airflow up or down. Anyway already out of the box these were so loose they wouldn't stay in the top-position.
 | Pages: 1 2 3 4 5 6 |  |
