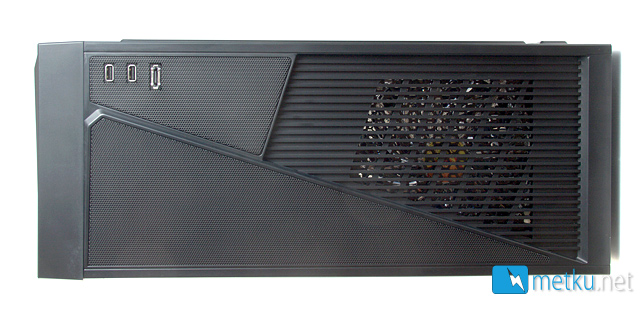

SuomeksiRoof
The roof shares the same design as the front, and there's also some connectors, this time there are two USB-connectors and as well as a single e-sata-connector. In the back there's a grille hiding the 200 mm exhaust fan.

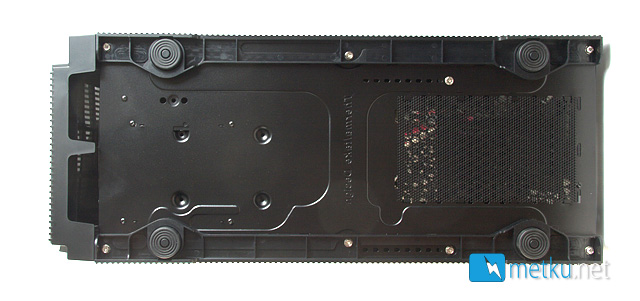

Bottom
In the bottom there are four feet and also some extra ventilation - in the rear there's a hole for the bottom-mounted power supply to draw air through and on the front you can see how the bottom of the front panel is also open for added airflow. Between the front feet one can also see where a single 2,5" drive can be mounted to the bottom of the case.

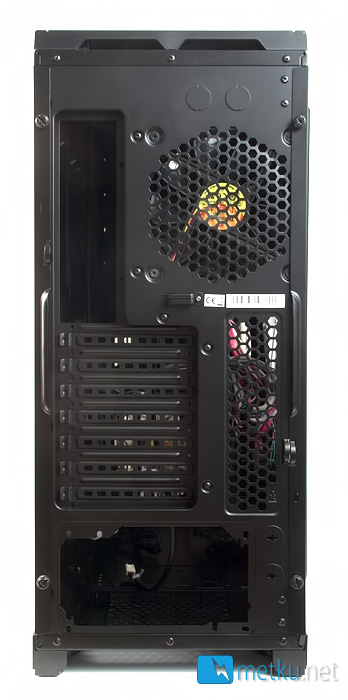

Rear
Looking at the rear it's the usual power-at-the-bottom kind of layout. Right at the top there are small gaps for the top exhaust fan to blow air through, under that there's the I/O-opening, a 120 mm exhaust fan and under that the ventilated PCI-card slots and some extra mesh next to them. At the bottom there's the said power supply hole, which can take the PSU either way and next to that two holes for water cooling hoses.
