SuomeksiCooling

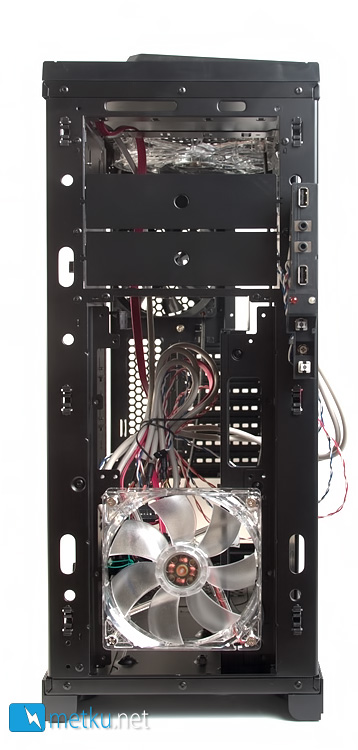

With the front panel pulled away one can see the single 120 mm intake fan that comes stock with the case. There's also room for another fan on top of the existing one, and if wanted, these 120 mm fans can be replaced by a single 200 mm model. The front panel is very easy to pull off as it's secured only with some plastic tabs and the connectors are mounted to the frame itself.

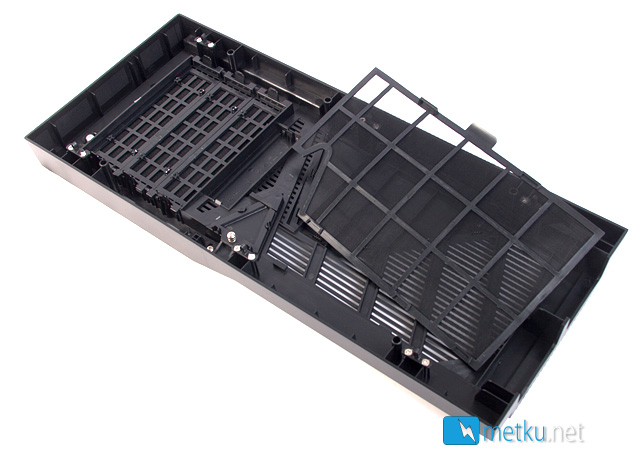

Behind the front panel there's also a dust filter. It's always nice to see manufacturers adding these filters, but unfortunately this is still a bit fiddly to remove for cleaning and seeing those holes on the bottom of the front panel it doesn't filter all the air either.

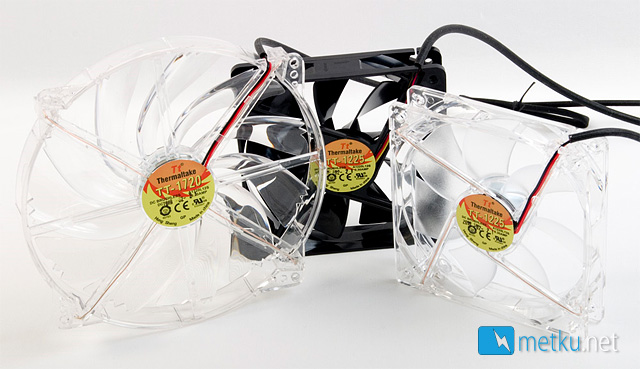

A group shot of the three stock fans. Both the 120 mm models are specified at 0,30 amps and 16 dBA, while the 200 mm top exhaust fan is rated at 0,20 A and 15 dBA. Of these three only the black rear fan comes with a three pin fan connector, the rest are connected straight to the PSU with 4-pin molex-connectors.
