SuomeksiThe Dragon
|

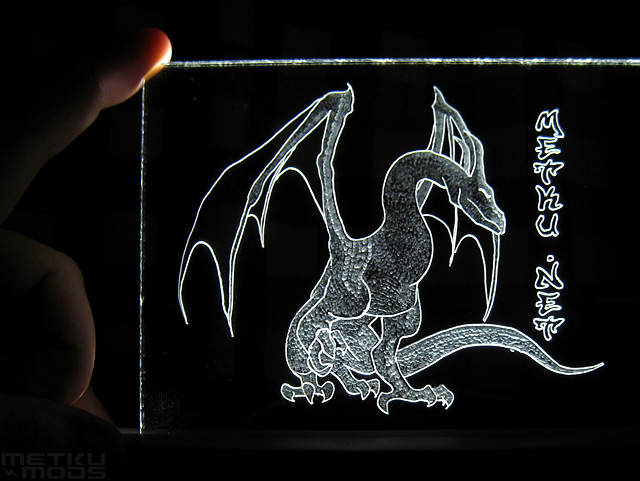

Now this is looking much better! I made this engraving while I was testing out the Dremel's 290-05 Engraver tool. Please, check out my other pieces too. Btw. AllTheMods is our new Modding Gallery that offer space for your own modding images. It also allows one to write modding project logs and articles too. Joining is free so test it out. |

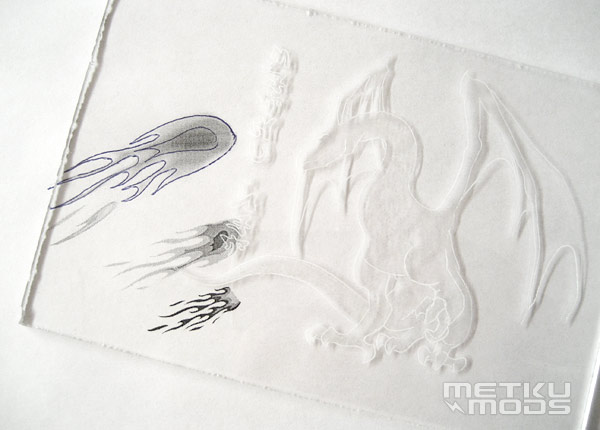

The Flames
Dragons tend to breath fire so it was only natural to Google for some reference flames. Now that the flames will be sitting ontop of each others the aligment and order of the layers becomes much more important. For this design the Dragon will be on the topmost layer and the flames will go from smaller to larger below that.

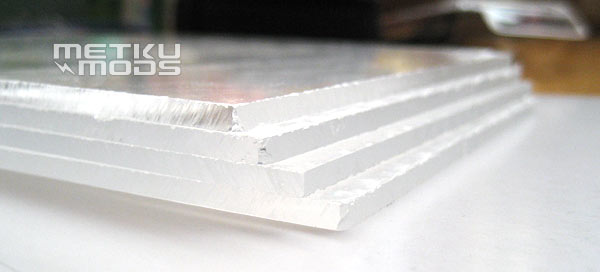

Four layers, 3 mm each so the end result will be a whopping 12 mm. Anything beyond this
and I'll be using a 7" TFT panel as a replacement.
And as always, ENGRAVING GOES TO THE BACK SIDE AND AS A MIRROR IMAGE!

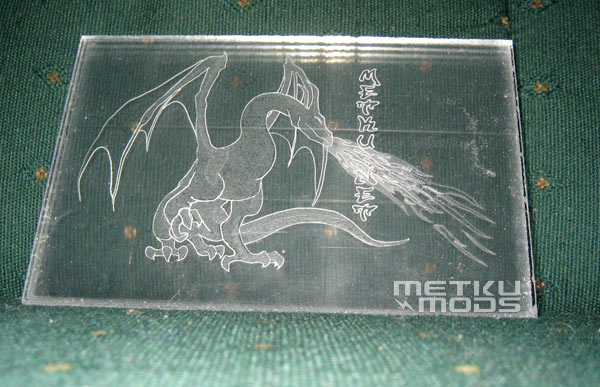

Everything engraved and all seem to line up properly. Now comes the taping, glueing and hooking up the leds.
