Tests
Hardware:| Processor | AMD Athlon 3400+ |
| RAM | Kingston HyperX PC3000 2x256MB 5-2-2-2 |
| Hard Drive | IBM 120GXP 80GB |
| Graphics Card | Club3D Radeon 9800 Pro 128MB |
| Graphics Driver | Catalyst 3.10 |
| Chipset Driver K8T800 | Hyperion 4.51 |
| Chipset Driver nForce3/nForce2 | 3.13 |
| Chipset Driver i865PE/i875P | 5.0.2.1003 |
| BIOS Version | 2003/11/10 |
| DirectX Version | 9.0b |
| OS | Windows XP |
| WinRAR 3.10 | Best compression |
| CDex 1.50 | High Quality, 256kbps |
| PhotoShop 7.0 | Filter test |
| CineBench 2003 | CPU test |
| Superpi 8M | 8M |
| Specviewperf 7.1.1 | Default tests |
| PCMark2002 | Crunch test |
| 3DMark2001SE build 330 | Default test |
| 3DMark03 build 340 | CPU test |
| AquaMark3 | CPU test |
| SiSoft Sandra 2004 | Default tests |
| Quake III Arena | Version 1,17, demo001, Highquality |
| Unreal Tournament 2003 | Version 2225, HardOCP UT2k3 Benchmark utility v2.1, CPU test |
As a reference I included few Athlon 64 motherboards and also AMD Athlon XP and Pentium 4 systems. All test systems have been configured to their fastest possible settings. It's somewhat unfair to compare Athlon XP 2600+ and Pentium 4 2,4 GHz processors directly to Athlon 64 3400+ but we are however doing it.
Default FSB
- Albatron K8X800 Pro II: 201.4MHz
- Epox 8HDA3+: 201MHz
- Shuttle AN50R: 200MHz
Epox 8HDA3+ has one megahertz higher FSB than it should be, whereas Albatron boosts FSB 1.4MHz. Impact to test scores are visible but very minor, so nothing to worry about.
Tests

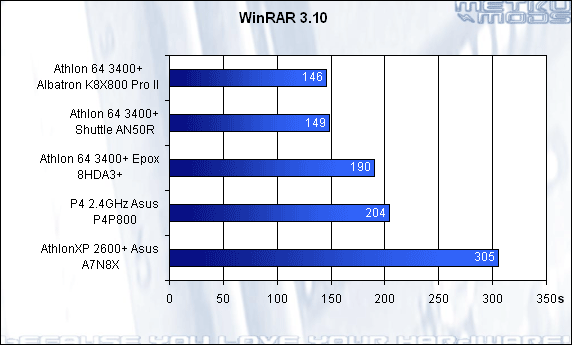

WinRAR 3.10
WinRAR 3.10 test is mostly memory latency and bandwidth test. Here Athlon 64 systems are on their best. Pentium 4 benefit from its high memory bandwidth, but Athlon 64 benefit more from its very low latency memory controller. Athlon XP system seems so slow here. What is interesting though is that Epox HDA3+ doesn't perform as good as other Athlon 64 motherboards, maybe a BIOS problem.

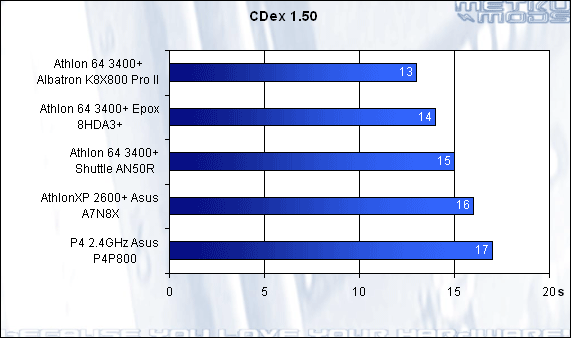

CDex 1.50
CDex 1.50 is mainly processor dependent. Most interesting is that there is so big difference between Athlon 64 motherboards.

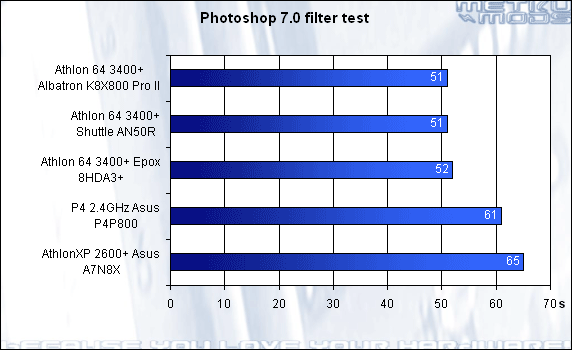

PhotoShop 7.0
All Athlon 64 systems perform very similar here.

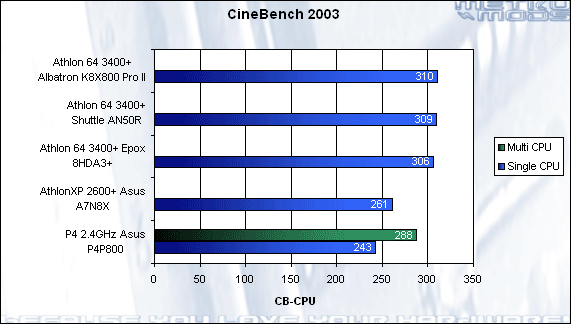

CineBench 2003
CineBench 2003 results show no difference between the Athlon 64 motherboards.

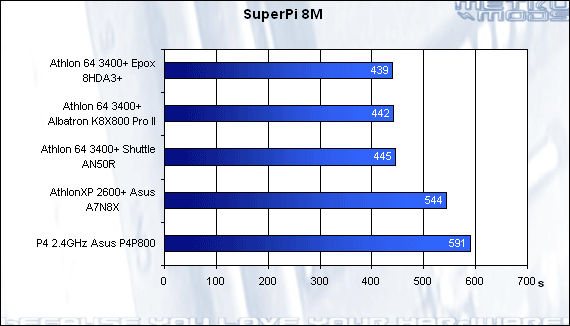

Superpi 8M
Epox 8HDA3+ is fastest and Shuttle AN50R is slowest Athlon 64 motherboard in this test, but differences are still very small.

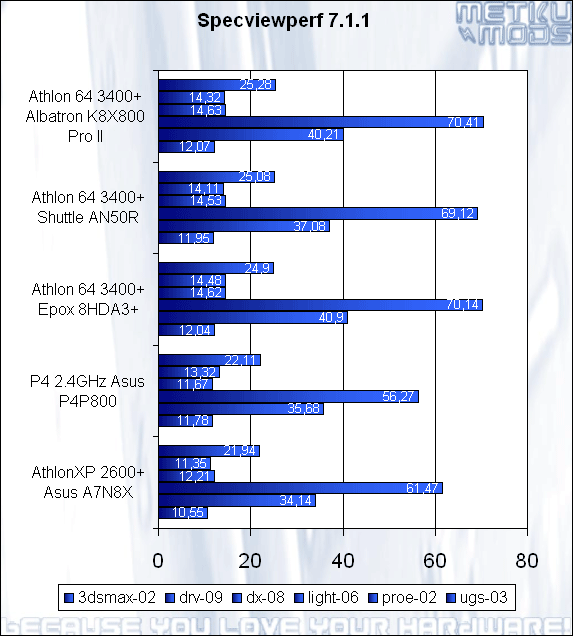

Specviewperf 7.1.1
Performance differences are again quite minimal.
