Cooling

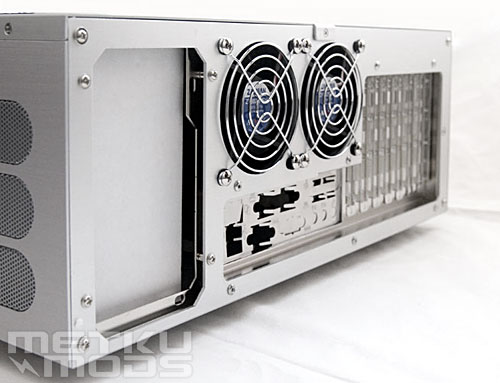

The backside of the case looks just like in any case except there are 2 * 80 mm fans and not one 120 mm like in most new cases these days. PSU is in its normal place with a possibility to mount it in either way. Besides these two fan mountings, there are also mounting holes for one 80 mm under the HDD-cage at the base of the case.
Cooling
|

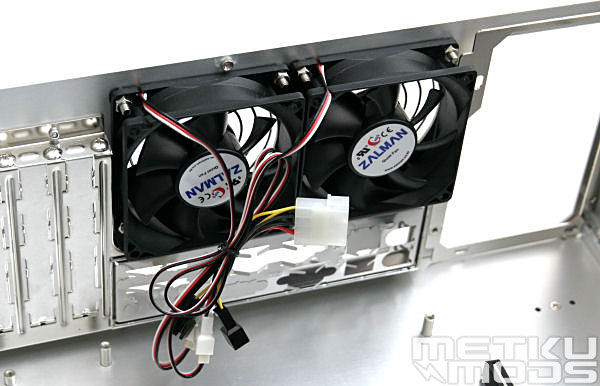

So the case comes with two 80 mm fans in the back, less surprisingly made by Zalman. They are insulated with soft gel mounts to prevent vibrations travelling to the case frame. With the delivered adapter the voltage of the fans can be changed between 12 and 5 volts. There are also fan guards at the back so no foreign objects, fingers etc. can be pushed to the fans from the behind of the case. |
Cooling
Cooling

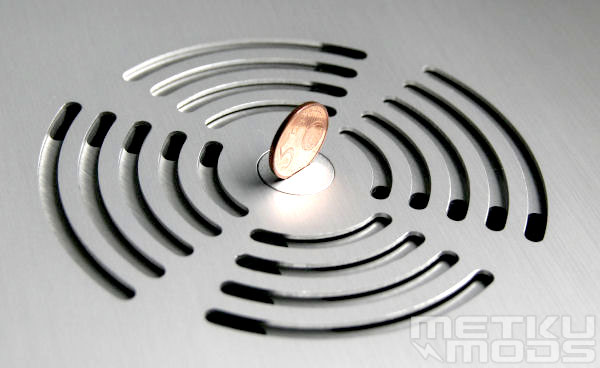

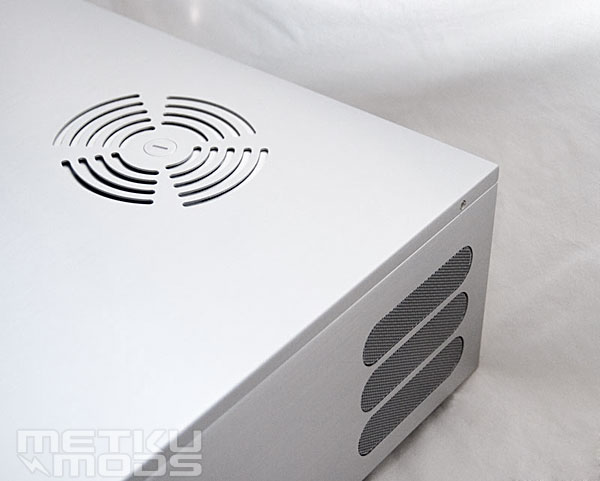

There are three visible ventilation holes, one on each side and one on the top. The top one can be opened and closed with a coin. One on the left side is meant for the VGA and other expansion cards while the one in the right is to deliver fresh air for the PSU. Manual explains that the top vent should be opened if the CPU cooler sucks air from above (7xxx-series) and should be closed otherwise.
