Project : Subwoofer Tutorial on how to design and build a high-end subwoofer.

Author: Antti Hakala Published: 09.03.2009 In English Suomeksi

Finishing touches

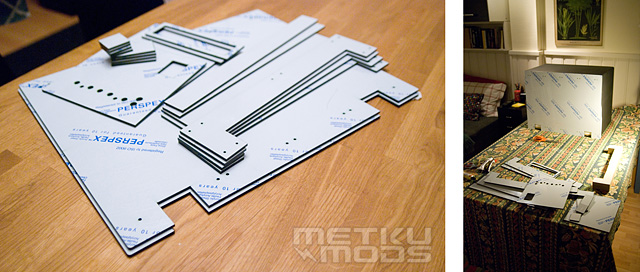

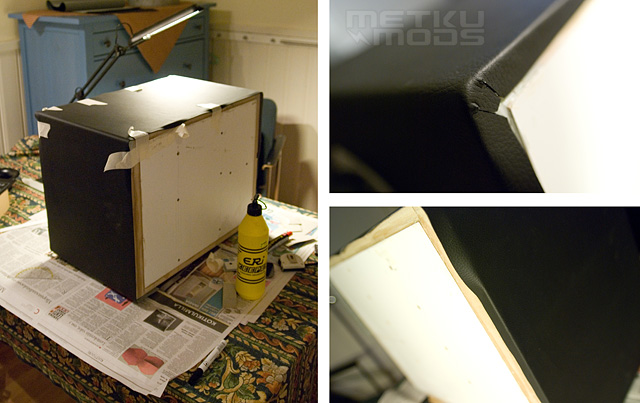

Box is covered with leather. For attaching the leather I use contact glue. For the acrylic parts seen in the 3D model I made autocad drawings and sent them to a acrylic laser cutting company. These parts cost 90 euros made of 4 mm black acrylic. Since they are laser cut they are ready to be used right away. No more jigsaws and hours of filing and sanding.

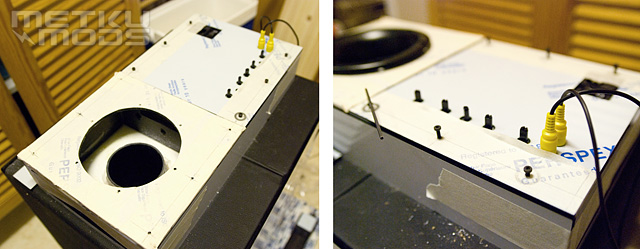

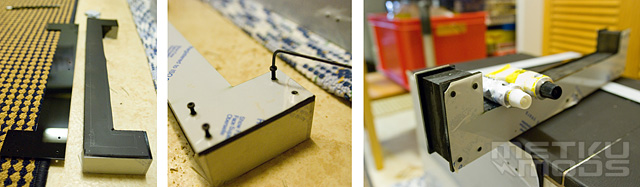

I started fitting, gluing and screving acryl parts in place. I also removed hi-level input from Hypex amplifier to make the back of the case more stealth since I don't need it. This stage is easy because all acryl parts fit perfectly. Couple of hours of gluing and the case was pretty much finished.

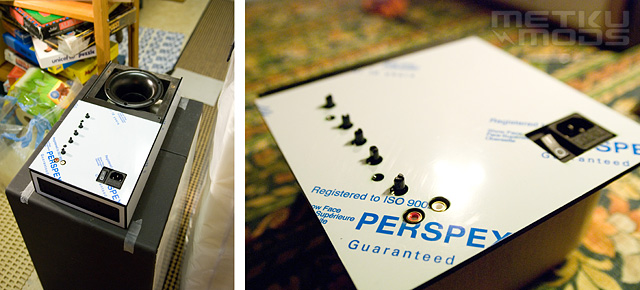

Amplifier section is getting its shape.
