The window

Project:: Arcade - Tutorial on how to build a desktop arcade cabinet

Here I'm cutting 6 mm polycarbonate that will be used as a window for the screen.

Project:: Arcade - Tutorial on how to build a desktop arcade cabinet

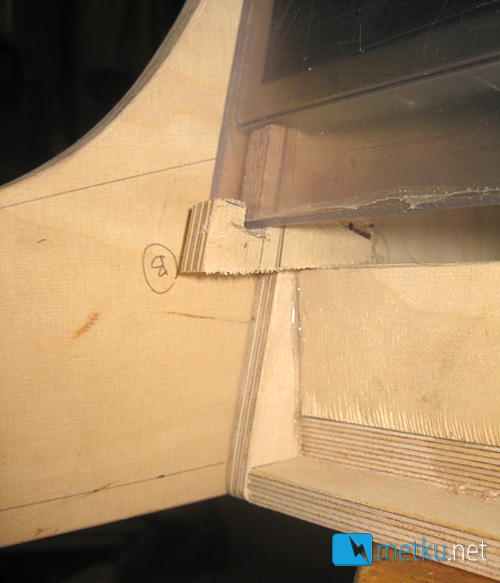

The window goes all the way past the control panel (you can see the drawn line on the left for it). I had to device a mounting for both the screen and the acrylic and in the end, I believe I found the best solution. By making the mount like this, I can remove both the TFT panel and the acrylic window via the opening in ceiling.

Project:: Arcade - Tutorial on how to build a desktop arcade cabinet

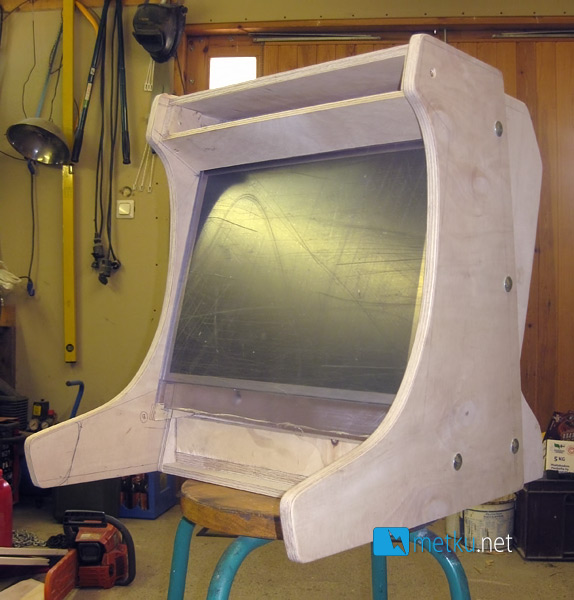

TFT panel and the window installed. In this photo you can also see the panel below the marquee spot that will house the speakers. I didn't glue it so I can later upgrade the audio system if I need to.
